SR SALVATORE ROBUSCHI RN series

Application areas & service documents

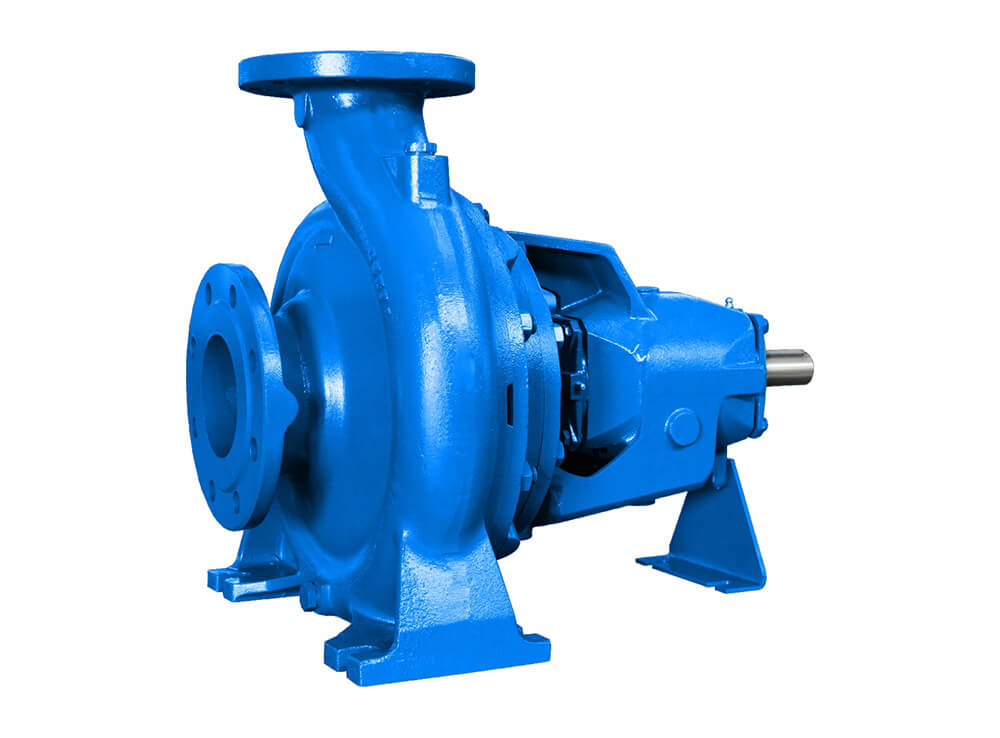

Salvatore Robuschi RN series pump

Centrifugal pump

Properties

Robust pump with closed impeller.
The RN series can be used for clean and non-aggressive media, such as heating, cooling and circulation systems or fire extinguishing systems, but can also be used in other applications (see below).

  • Closed impeller according to EN 733 standards
  • Solids content up to max.
    0,2%
  • Discharge nozzle size from DN 32 to DN 150

Possible examples

Areas of application

  • Water supply
  • Heating, cooling and circulation systems
  • Fire extinguishing systems
  • Irrigation

Specifications

Power range

  • Power range: 0.25-75kW
  • max. Flow rate: 480m³/h or 8000l/min
  • max. Conveying height: 90m
  • Connections up to 6″ inch / DN150
  • 2014/34/EU ATEX
