SR SALVATORE ROBUSCHI RD series

Application areas & service documents

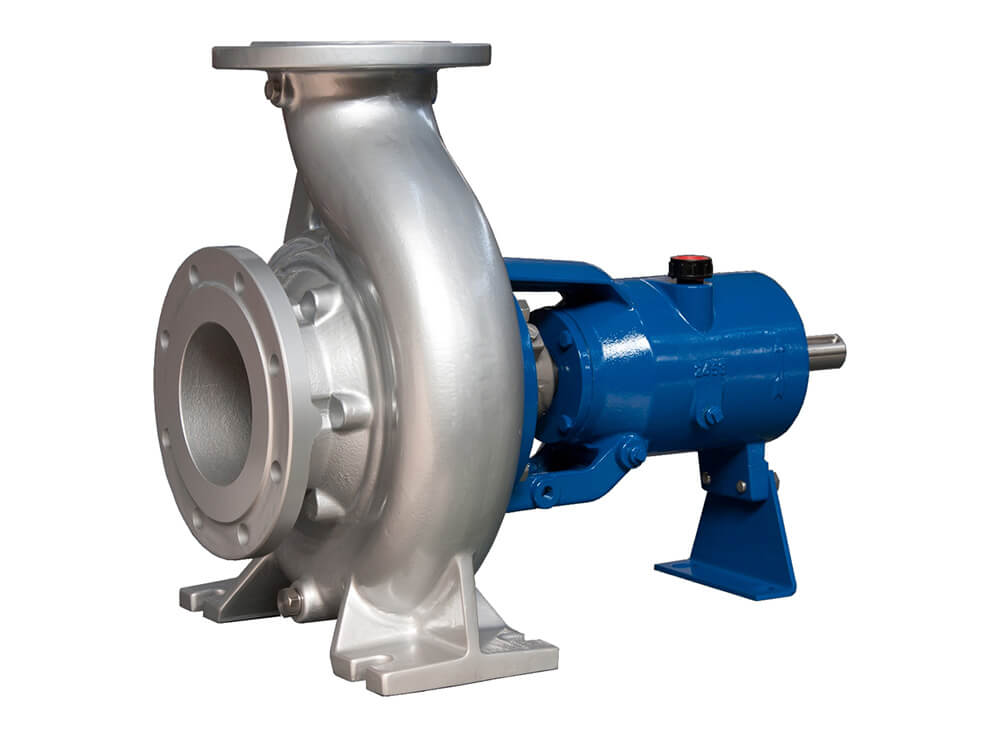

Salvatore Robuschi RD series pump

Centrifugal pump

Properties

Robust pump with closed impeller.
The pumps of the RD series can be used for aggressive organic and inorganic liquids for the chemical and petrochemical industry or absorption plants in environmental technology but also for other applications (see below).

  • Simple and modular design in accordance with ISO 2858-5199
  • Pressure nozzles from DN 32 to DN 125
  • High hydraulic efficiency and low NPSH value (precision cast impellers)
  • Heavy-duty shaft and bearing
  • Only three bearing bracket sizes for the entire series

Possible examples

Areas of application

  • Chemical and petrochemical industry
  • Seawater desalination
  • Absorption systems
  • Power plants
  • Steel industry
  • Hot water distribution

Specifications

Power range

  • Power range: 0.25-130kW
  • max. Flow rate: 500m³/h or 8333l/min
  • max. Conveying height: 140m
  • Connections up to 5″ inch / DN125
  • 2014/34/EU ATEX?
