SR SALVATORE ROBUSCHI RB series

Application areas & service documents

calpeda logo

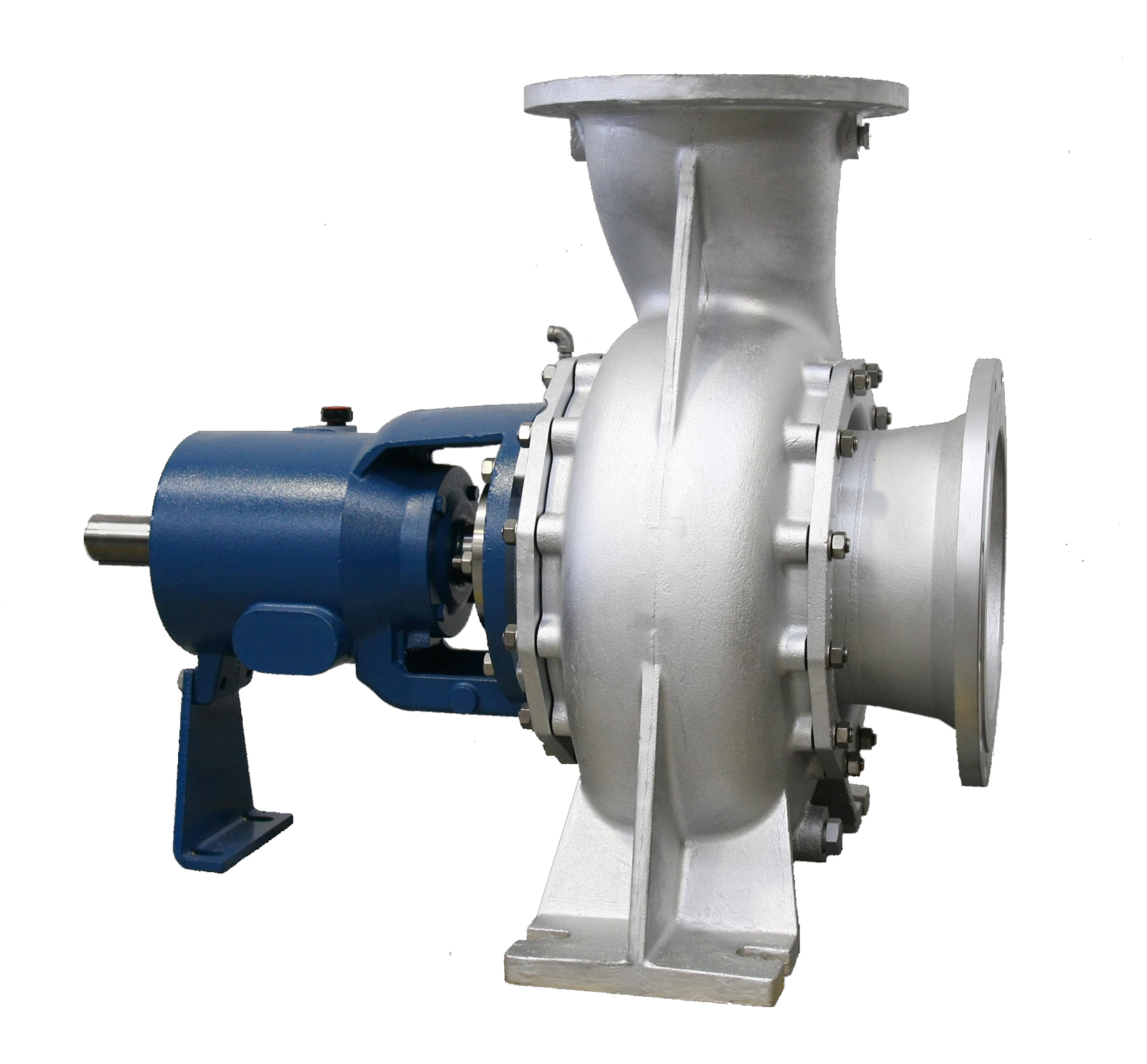

Centrifugal pump

Properties

Robust pump with multi-channel impeller.
The RB series can be used for a wide variety of media, such as slightly contaminated waste water in sewage treatment plants, water for cooling towers or seawater desalination plants, as well as viscous media in evaporators in the food or chemical industry, but are also used in other applications (see below).

  • Simple and modular design with bearing bracket in accordance with ISO 5199
  • Discharge nozzle size from DN 65 to DN 300
  • Impeller with special blade geometry for low NPSH and high free passage
  • Heavy-duty shaft and bearing
  • Only 5 bearing blocks for the entire area

Possible examples

Areas of application

  • Refineries
  • Pulp and paper industry
  • Food industry
  • Seawater desalination
  • Hot water distribution
  • Steel industry
  • Power plants

Specifications

Power range

  • Power range: 0.25-320kW
  • max. Flow rate: 2400m³/h or 40000l/min
  • max. Conveying height: 70m
  • Connections up to 12″ inch / DN300
  • 2014/34/EU ATEX
